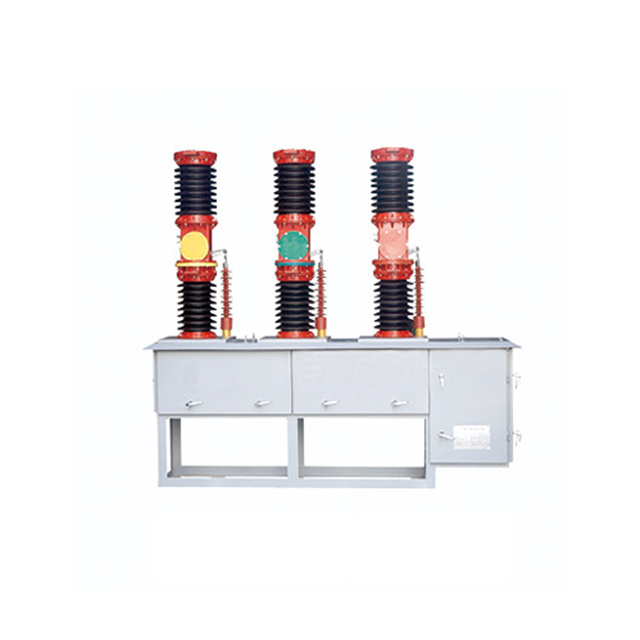

Pillar - type fully enclosed structure with high sealing performance
Vacuum silicone grease is filled between the arc - extinguishing chamber and the insulating cylinder, which has good sealing performance, anti - aging and high - voltage resistance;
Vacuum arc extinguishing and vacuum silicone grease insulation are adopted, with good breaking performance and high safety and reliability;
It has a high insulation level, and a heater is installed in the box to prevent electrical components from getting damp, so that it can operate in high - altitude and low - temperature environments;
Effectively solve the problem of condensation and avoid defects caused by inflation and oil filling;
Long service life and low maintenance workload.
Specially equipped current transformer with multiple secondary windings, high precision and large capacity;
The current transformer can be installed either inside the box or outside the box.
Various convenient and flexible installation structures
The circuit breaker has various structures such as side - mounted type, middle - mounted type and built - in insulating pull rod, which is convenient for users to choose according to different installation locations.
Pillar - type fully enclosed structure with high sealing performance
Vacuum silicone grease is filled between the arc - extinguishing chamber and the insulating cylinder, which has good sealing performance, anti - aging and high - voltage resistance;
Vacuum arc extinguishing and vacuum silicone grease insulation are adopted, with good breaking performance and high safety and reliability;
It has a high insulation level, and a heater is installed in the box to prevent electrical components from getting damp, so that it can operate in high - altitude and low - temperature environments;
Effectively solve the problem of condensation and avoid defects caused by inflation and oil filling;
Long service life and low maintenance workload.
Specially equipped current transformer with multiple secondary windings, high precision and large capacity;
The current transformer can be installed either inside the box or outside the box.
Various convenient and flexible installation structures
The circuit breaker has various structures such as side - mounted type, middle - mounted type and built - in insulating pull rod, which is convenient for users to choose according to different installation locations.
1. Ambient air temperature: -40°C ~ +40°C;
2. Altitude: not exceeding 2000m;
3. Ambient air can be contaminated by dust, smoke, corrosive gases, steam or salt spray, and the pollution degree shall not exceed Grade IV in GB/T5582;
4. Wind speed: not exceeding 34m/s (equivalent to 700Pa on the cylindrical surface);
5. Vibration or ground motion from outside switchgear and controlgear is negligible;
6. The amplitude of electromagnetic interference induced in the secondary system shall not exceed 1.6kV;
7. Special operating conditions: If the requirements cannot be met under normal operating conditions, please consult us for customization.
1. Ambient air temperature: -40°C ~ +40°C;
2. Altitude: not exceeding 2000m;
3. Ambient air can be contaminated by dust, smoke, corrosive gases, steam or salt spray, and the pollution degree shall not exceed Grade IV in GB/T5582;
4. Wind speed: not exceeding 34m/s (equivalent to 700Pa on the cylindrical surface);
5. Vibration or ground motion from outside switchgear and controlgear is negligible;
6. The amplitude of electromagnetic interference induced in the secondary system shall not exceed 1.6kV;
7. Special operating conditions: If the requirements cannot be met under normal operating conditions, please consult us for customization.
1. switchgears, Substation ,transformers,cable distribution box and various electrical equipment, such as vacuum circuit breaker , load break switch etc.
Our factory is the excellent supplier of State Grid Corporation od China.
2. Do you accept customized serveice?
We offer OEM/ODM service, can print your logo on product. our professional technical and quotation team can provice a satisfied project according to your drawing and parameters .
3. What is your MOQ?
Our MOQ is 1 piece.
4. How long is your delivery lead time?
It depends on your product requirement and quantity. Generally , 5~10 working days is avaliable.
5. How do you solve quality problems?
Please porvide detailed photoes of quality problems. our technical and quality testing department will analyse. we will make a satisfied soluton within 2 days.
6. What is your payment terms?
30%T/T in adcance, 70% before shipment. West union, L/C are also acceptable.
1. switchgears, Substation ,transformers,cable distribution box and various electrical equipment, such as vacuum circuit breaker , load break switch etc.
Our factory is the excellent supplier of State Grid Corporation od China.
2. Do you accept customized serveice?
We offer OEM/ODM service, can print your logo on product. our professional technical and quotation team can provice a satisfied project according to your drawing and parameters .
3. What is your MOQ?
Our MOQ is 1 piece.
4. How long is your delivery lead time?
It depends on your product requirement and quantity. Generally , 5~10 working days is avaliable.
5. How do you solve quality problems?
Please porvide detailed photoes of quality problems. our technical and quality testing department will analyse. we will make a satisfied soluton within 2 days.
6. What is your payment terms?
30%T/T in adcance, 70% before shipment. West union, L/C are also acceptable.
