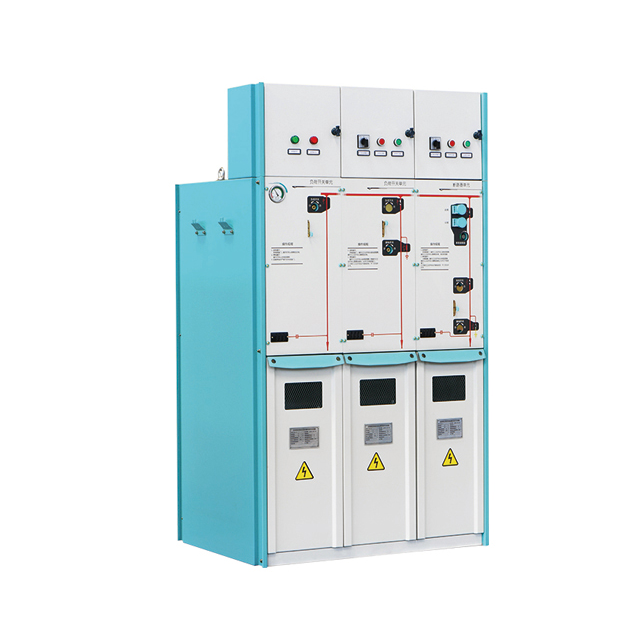

The SXRM6 - 12 series gas - insulated cabinet uses SF₆ gas as the arc - extinguishing and insulating medium.
The switchgear has a fully sealed and fully insulated structure; busbars, switches and live parts are completely enclosed in a stainless steel shell.
The cavity is filled with 1.4bar of SF₆ gas, and the protection class reaches IP67: The entire switch device is completely unaffected by external environmental conditions, and can ensure the normal operation of the switch even in extreme situations such as short - term water immersion, and the product is maintenance - free for life.
The switchgear is equipped with a complete "five - prevention" interlocking device, completely eliminating personnel and equipment operation failures that may be caused by human misoperation.
All switchgears have reliable safety pressure relief channels, which can ensure the personal safety of operators even in extreme situations.
The switchgear is divided into two categories: fixed unit combination and expandable unit combination.
The switchgear usually has front incoming and outgoing lines, and can also realize side outgoing lines or side expansion according to different installation positions.
The cabinet size is convenient for installation and can be suitable for places with narrow space and poor environmental conditions.
The switchgear can be configured with electric, remote control and monitoring devices according to different needs of users.
The SXRM6 - 12 series gas - insulated cabinet uses SF₆ gas as the arc - extinguishing and insulating medium.
The switchgear has a fully sealed and fully insulated structure; busbars, switches and live parts are completely enclosed in a stainless steel shell.
The cavity is filled with 1.4bar of SF₆ gas, and the protection class reaches IP67: The entire switch device is completely unaffected by external environmental conditions, and can ensure the normal operation of the switch even in extreme situations such as short - term water immersion, and the product is maintenance - free for life.
The switchgear is equipped with a complete "five - prevention" interlocking device, completely eliminating personnel and equipment operation failures that may be caused by human misoperation.
All switchgears have reliable safety pressure relief channels, which can ensure the personal safety of operators even in extreme situations.
The switchgear is divided into two categories: fixed unit combination and expandable unit combination.
The switchgear usually has front incoming and outgoing lines, and can also realize side outgoing lines or side expansion according to different installation positions.
The cabinet size is convenient for installation and can be suitable for places with narrow space and poor environmental conditions.
The switchgear can be configured with electric, remote control and monitoring devices according to different needs of users.
F Module | V Module | V Module | CB Module | CB Module | |||
| Combined Apparatus | Vacuum Switch | Isolation/Earthing Switch | Vacuum Circuit Breaker | Isolation/Earthing Switch | |||
| Load Switch | |||||||
Rated Voltage kV | 12 | 12 | 12 | 12 | 12 | ||
Rated Frequency Hz | 50 | 50 | 50 | 50 | 50 | ||
Power Frequency Withstand Voltage (Phase-to-phase / Break) kV | 42/48 | 42/48 | 42/48 | 42/48 | 42/48 | ||
| Lightning Impulse Withstand Voltage kV | 75/85 | 75/85 | 75/85 | 75/85 | 75/85 | ||
Rated Current A | 630 | Note 1 | 630 | 1250/630 | |||
Breaking Capacity: | |||||||
Rated Closed-loop Breaking Current A | 630 | ||||||
Rated Cable Charging Breaking Current A | 10 | ||||||
| Rated Short-circuit Making Current (Peak) A | 50 | ||||||
Rated Peak Withstand Current kA | 50 | 80 | |||||
Rated Short-time Withstand Current kA/3s | 20 | ||||||
Rated Short-circuit Breaking Current kA | 31.5 | 20 | 25 | ||||
Rated Transfer Current A | 1700 | ||||||
| Maximum Current of Matched Fuse A | 125 | ||||||
Loop Resistance n | ≤ 300 | ≤ 600 | |||||
Mechanical Life (Times) | 5000 | 3000 | 5000 | 2000 | 5000 | ||
| Note: 1) Depends on the current rating of the fuse | |||||||
F Module | V Module | V Module | CB Module | CB Module | |||
| Combined Apparatus | Vacuum Switch | Isolation/Earthing Switch | Vacuum Circuit Breaker | Isolation/Earthing Switch | |||
| Load Switch | |||||||
Rated Voltage kV | 12 | 12 | 12 | 12 | 12 | ||
Rated Frequency Hz | 50 | 50 | 50 | 50 | 50 | ||
Power Frequency Withstand Voltage (Phase-to-phase / Break) kV | 42/48 | 42/48 | 42/48 | 42/48 | 42/48 | ||
| Lightning Impulse Withstand Voltage kV | 75/85 | 75/85 | 75/85 | 75/85 | 75/85 | ||
Rated Current A | 630 | Note 1 | 630 | 1250/630 | |||
Breaking Capacity: | |||||||
Rated Closed-loop Breaking Current A | 630 | ||||||
Rated Cable Charging Breaking Current A | 10 | ||||||
| Rated Short-circuit Making Current (Peak) A | 50 | ||||||
Rated Peak Withstand Current kA | 50 | 80 | |||||
Rated Short-time Withstand Current kA/3s | 20 | ||||||
Rated Short-circuit Breaking Current kA | 31.5 | 20 | 25 | ||||
Rated Transfer Current A | 1700 | ||||||
| Maximum Current of Matched Fuse A | 125 | ||||||
Loop Resistance n | ≤ 300 | ≤ 600 | |||||
Mechanical Life (Times) | 5000 | 3000 | 5000 | 2000 | 5000 | ||
| Note: 1) Depends on the current rating of the fuse | |||||||
