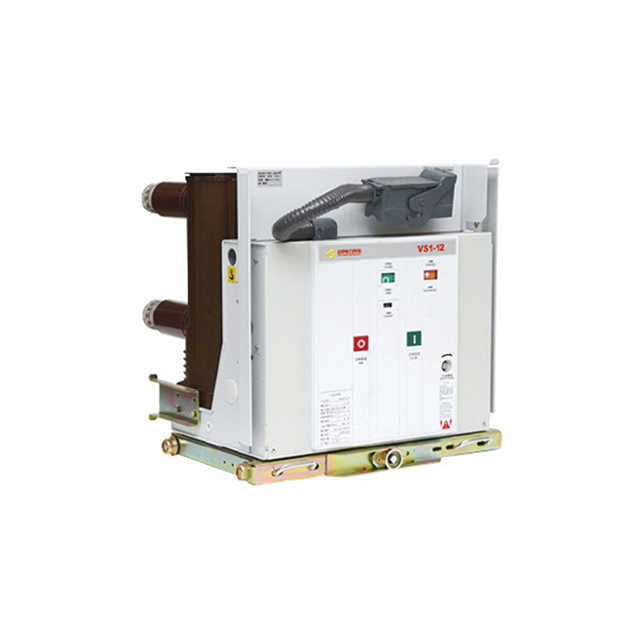

The VS1-12 series Indoor High-Voltage Vacuum Circuit Breaker is a premium indoor switching device engineered for three-phase AC power systems, specializing in protection and control for power grid equipment and industrial electrical infrastructure. Available in standard VS1-12 and permanent magnet VS1-12M variants, this breaker is designed to excel in environments requiring frequent operations or repeated short-circuit interruptions. Its innovative design—combining an integrated operating mechanism with a compact breaker body—makes it versatile, suitable for both fixed installation and withdrawable (handcart) configurations. As a trusted component in indoor power systems, the VS1-12 series delivers unmatched reliability, precision, and durability, ensuring the safety and efficiency of critical power networks.
The VS1-12 series Indoor High-Voltage Vacuum Circuit Breaker excels in controlling and regulating normal load currents in indoor power systems. It provides smooth closing and opening operations, ensuring stable power delivery to connected equipment—from industrial machinery to commercial building infrastructure. Its precise control capabilities prevent voltage fluctuations, protecting sensitive devices from damage caused by inconsistent power flow.
In the event of short circuits, the breaker responds swiftly to interrupt fault currents, minimizing damage to the power grid and connected equipment. The vacuum interruption technology ensures that arcs are quenched rapidly, preventing electrical fires and system failures. This critical protection function is essential for maintaining the integrity of indoor power networks, especially in high-voltage industrial and commercial settings.
The VS1-12 series is designed to coordinate seamlessly with other protection devices, such as relays and fuses, creating a comprehensive safety network for indoor power systems. It communicates with these devices to trigger synchronized responses to abnormal conditions—such as overloads, phase failures, or short circuits—ensuring that protection measures are activated promptly and effectively. This coordination reduces the risk of cascading failures and minimizes downtime.
One of the key functional advantages of the VS1-12 series is its flexible installation options. The standard model can be installed as a fixed unit, ideal for space-constrained environments. For applications requiring easier maintenance or equipment replacement, it can be equipped with a dedicated propulsion mechanism to form a withdrawable (handcart) unit. This flexibility allows it to adapt to diverse indoor power system layouts and maintenance needs.
The VS1-12M model features an advanced permanent magnet mechanism with a direct-drive structure, setting it apart from traditional circuit breakers. This design eliminates mechanical wear associated with conventional mechanisms, enhancing durability and reliability—especially in environments with frequent operations. The permanent magnet mechanism also ensures consistent performance over time, reducing the need for adjustments or repairs.
The VS1-12 series adopts an integrated design that combines the operating mechanism and breaker body into a single unit. This integration reduces the number of moving parts, minimizing the risk of mechanical failure and simplifying maintenance. The compact structure also saves valuable space in switchgear cabinets, allowing for more efficient use of indoor power infrastructure.
The flexibility to choose between fixed and withdrawable installation modes makes the VS1-12 series adaptable to diverse user needs. Fixed units are ideal for permanent installations where space is limited, while withdrawable handcart units allow for easy removal and replacement during maintenance—eliminating the need to disconnect the entire power system. This dual-option design enhances usability and reduces downtime.
Unlike breakers designed for occasional use, the VS1-12 series is engineered to handle frequent opening and closing operations. This makes it perfect for applications such as industrial production lines, where equipment is turned on and off regularly, or power distribution systems that require frequent load adjustments. Its robust construction and vacuum interruption technology ensure that performance remains consistent even with high operational frequency.
Built specifically for indoor use, the VS1-12 series delivers reliable performance in controlled indoor environments. It is resistant to dust, humidity, and moderate temperature fluctuations, ensuring stable operation in industrial workshops, substations, and commercial buildings. Its sealed components prevent contamination from indoor pollutants, extending its lifespan and reducing maintenance requirements.
Industrial workshops—including manufacturing plants, metal processing facilities, and assembly lines—rely on the VS1-12 series for precise power control and protection. Its ability to handle frequent operations and short-circuit interruptions makes it ideal for powering heavy machinery, while its compact design fits seamlessly into workshop switchgear cabinets.
Indoor substations are critical for distributing power in urban areas, commercial districts, and industrial parks. The VS1-12 series is a key component in these substations, integrated into switchgear to protect transformers, cables, and other high-voltage equipment. Its reliable performance ensures that the substation operates safely, minimizing the risk of power outages for downstream users.
Tall buildings, shopping malls, and other commercial facilities require robust indoor high-voltage systems to power elevators, HVAC systems, and lighting. The VS1-12 series provides the necessary protection and control, ensuring that these systems operate efficiently and safely. Its flexible installation options allow it to be integrated into the building’s existing power infrastructure with minimal modifications.
Mining operations rely on stable and safe power systems to run drilling equipment, conveyor belts, and processing machinery. The VS1-12 series is well-suited for mining enterprise indoor power facilities, with its rugged design and ability to handle frequent operations. It protects against short circuits and overloads, minimizing downtime in critical mining processes.
The fixed installation mode of the VS1-12 series mounts the breaker permanently in place, ideal for space-limited areas or installations where maintenance access is not a frequent need. The withdrawable (handcart) mode uses a dedicated propulsion mechanism, allowing the breaker to be pulled out of the switchgear cabinet for maintenance or replacement—eliminating the need to disconnect the entire power system. The choice depends on your maintenance schedule and space constraints.
Yes, the VS1-12M variant—equipped with a permanent magnet mechanism—is specifically designed for extremely frequent operations. Its direct-drive structure reduces mechanical wear, ensuring consistent performance even with hundreds of daily opening and closing cycles. This makes it the ideal choice for applications like production lines, where equipment is cycled on and off regularly.
The VS1-12 series requires minimal maintenance due to its integrated design and high-quality components. Routine checks include inspecting the breaker for dust accumulation, verifying the integrity of electrical connections, and testing the operating mechanism’s responsiveness. The vacuum interrupters have a long service life, and no regular replacement is needed under normal operating conditions—reducing maintenance costs and downtime.
