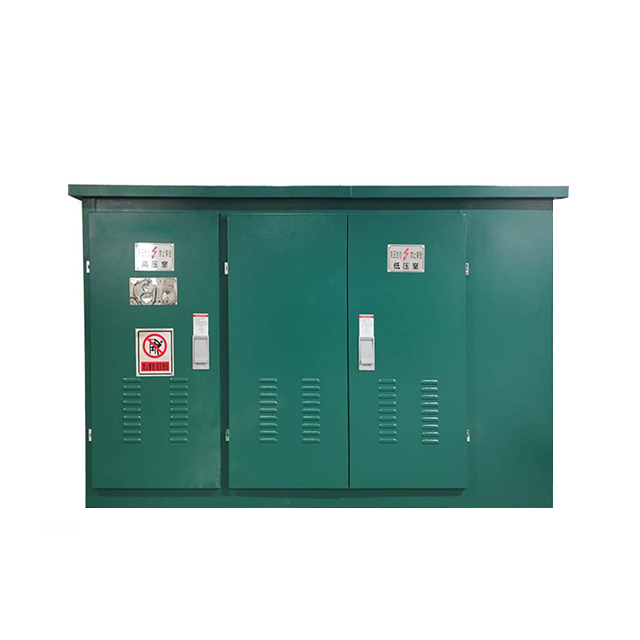

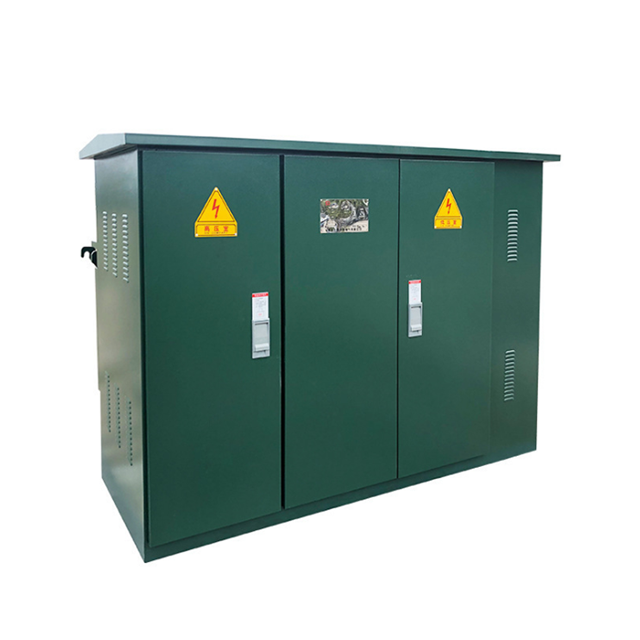

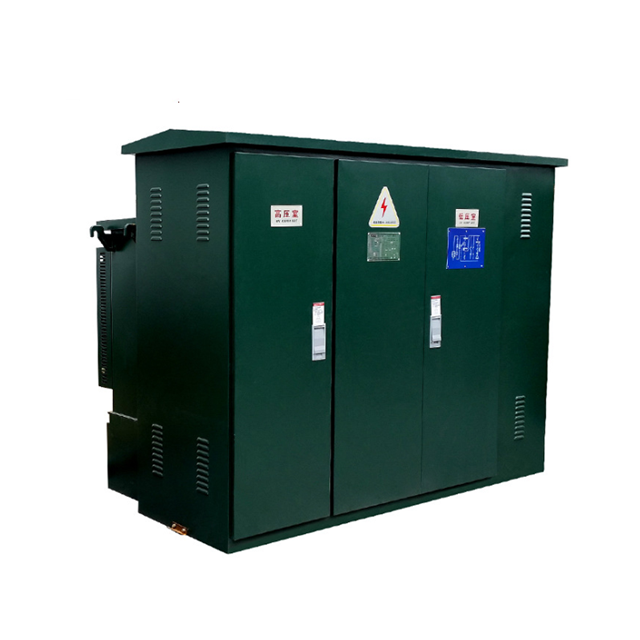

It has a compact structure and small volume, only about 1/3 to 1/5 of that of domestic European-style box - type substations with the same capacity, greatly reducing the floor area.
It adopts a fully sealed and fully insulated structure, no insulation distance is required, and it can reliably protect personal safety.
The high - voltage wiring can be used for both ring networks and terminals. The power supply mode is flexible and has high reliability.
The transformer has excellent performance: low loss, low noise, and low temperature rise; it has strong overload capacity, short - circuit resistance, and impact resistance.
It meets various low - voltage feeder requirements and can be selected according to schemes or designed by users themselves.
There are two types of cable heads: 200A elbow - type plugs and 600A "T" - type fixed cable joints. Both can be equipped with fully insulated zinc oxide arresters. The 200A - type cable head can be plugged and unplugged with load and can also play the role of an isolating switch.
It has a compact structure and small volume, only about 1/3 to 1/5 of that of domestic European-style box - type substations with the same capacity, greatly reducing the floor area.
It adopts a fully sealed and fully insulated structure, no insulation distance is required, and it can reliably protect personal safety.
The high - voltage wiring can be used for both ring networks and terminals. The power supply mode is flexible and has high reliability.
The transformer has excellent performance: low loss, low noise, and low temperature rise; it has strong overload capacity, short - circuit resistance, and impact resistance.
It meets various low - voltage feeder requirements and can be selected according to schemes or designed by users themselves.
There are two types of cable heads: 200A elbow - type plugs and 600A "T" - type fixed cable joints. Both can be equipped with fully insulated zinc oxide arresters. The 200A - type cable head can be plugged and unplugged with load and can also play the role of an isolating switch.
Ambient temperature: Maximum temperature +40°C, minimum temperature -30°C;
Altitude: ≤ 4000m;
Wind speed: Equivalent to 34m/s (not greater than 700Pa);
Humidity: The average daily relative humidity is not greater than 95%; the monthly relative humidity value is not greater than 95%;
Earthquake resistance: Horizontal acceleration is not greater than 0.4m/S2, vertical acceleration is not greater than 0.15m/S2;
Installation site inclination: Not greater than 3°;
Installation environment: The surrounding air is not obviously polluted by corrosive, combustible gases, etc., and there is no violent vibration at the installation site;
When ordering this product beyond the above conditions, you can negotiate with our company.
Ambient temperature: Maximum temperature +40°C, minimum temperature -30°C;
Altitude: ≤ 4000m;
Wind speed: Equivalent to 34m/s (not greater than 700Pa);
Humidity: The average daily relative humidity is not greater than 95%; the monthly relative humidity value is not greater than 95%;
Earthquake resistance: Horizontal acceleration is not greater than 0.4m/S2, vertical acceleration is not greater than 0.15m/S2;
Installation site inclination: Not greater than 3°;
Installation environment: The surrounding air is not obviously polluted by corrosive, combustible gases, etc., and there is no violent vibration at the installation site;
When ordering this product beyond the above conditions, you can negotiate with our company.
| Serial Number | Item | Unit | Technical Parameter | ||||
| 1 | Rated Voltage | kV | 10/0.4 (High Voltage / Low Voltage) | ||||
| 2 | Maximum Operating Voltage | kV | 12 (High - voltage Side) | ||||
| 3 | Rated Frequency | Hz | 50 | ||||
| 4 | Rated Capacity | kVA | 150 - 1600 | ||||
| 5 | 1min Power - frequency Withstand Voltage | kV | 35 | ||||
| 6 | Lightning Impulse Voltage | kV | 75 | ||||
| 7 | Cooling Method | - | Oil - immersed Self - cooling | ||||
| 8 | Breaking Current of High - voltage Backup Fuse | kA | 50 | ||||
| 9 | Breaking Current of Plug - in Fuse | kA | 2.5 | ||||
| 10 | Ambient Temperature | ℃ | -35 ~ +40 | ||||
| 11 | Allowable Temperature Rise of Coil | K | 65 | ||||
| 12 | No - load Voltage Regulation | - | ±5% or ±2×2.5% | ||||
| 13 | Noise Level | db | 50 | ||||
| 14 | Protection Class | - | IP43 | ||||
| Serial Number | Item | Unit | Technical Parameter | ||||
| 1 | Rated Voltage | kV | 10/0.4 (High Voltage / Low Voltage) | ||||
| 2 | Maximum Operating Voltage | kV | 12 (High - voltage Side) | ||||
| 3 | Rated Frequency | Hz | 50 | ||||
| 4 | Rated Capacity | kVA | 150 - 1600 | ||||
| 5 | 1min Power - frequency Withstand Voltage | kV | 35 | ||||
| 6 | Lightning Impulse Voltage | kV | 75 | ||||
| 7 | Cooling Method | - | Oil - immersed Self - cooling | ||||
| 8 | Breaking Current of High - voltage Backup Fuse | kA | 50 | ||||
| 9 | Breaking Current of Plug - in Fuse | kA | 2.5 | ||||
| 10 | Ambient Temperature | ℃ | -35 ~ +40 | ||||
| 11 | Allowable Temperature Rise of Coil | K | 65 | ||||
| 12 | No - load Voltage Regulation | - | ±5% or ±2×2.5% | ||||
| 13 | Noise Level | db | 50 | ||||
| 14 | Protection Class | - | IP43 | ||||
